The Complete Lab Equipment Access Control Solution

CardTap provides individual equipment lockouts - not just room-level access control. Our integrated system combines proprietary hardware, cloud infrastructure, and a powerful management portal to deliver fine-grained access control for accountability, safety, billing, and equipment maintenance tracking.

Complete SaaS Solution

One System. Total Control.

CardTap is more than software - it's a complete ecosystem designed for labs, makerspaces, and facilities that need precise control over who uses what equipment and when.

ControlTap Hardware
Physical access control modules
AWS Cloud Infrastructure
Reliable, secure, always available
CardTap Portal
Web-based management dashboard

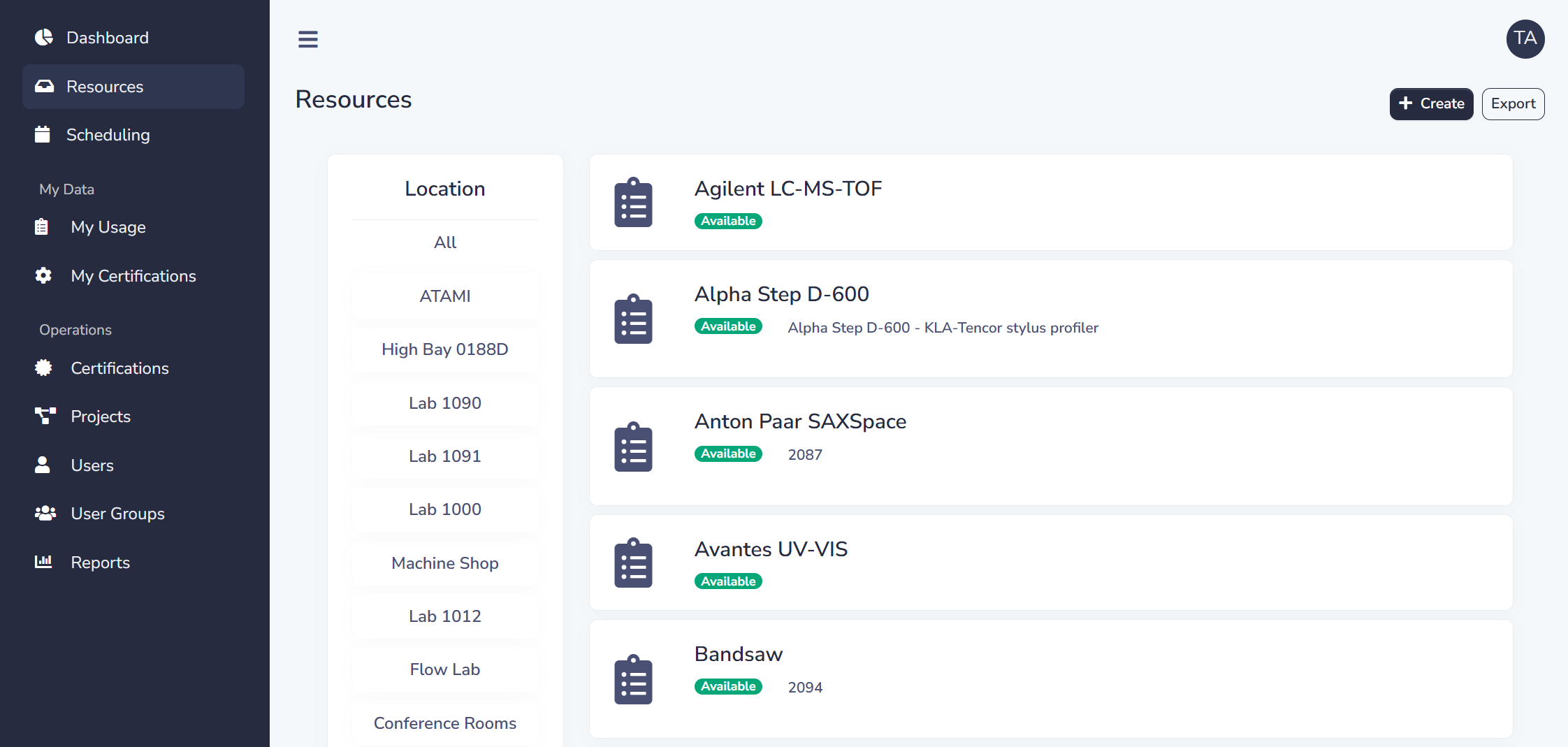

CardTap Portal Resources View
Hardware

ControlTap Access Control Hardware

Purpose-built hardware modules that physically control access to your equipment. Hardware is purchased outright with a license for ongoing warranty and updates.

ControlTap Console

The central hub for your access control system. Available in two configurations:

  • Standard (Wired) - Direct interface with modules for power/data control
  • Standalone (Wireless) - WiFi-enabled for remote equipment or 120V outlet control

HV Module

High-voltage relay module for custom power control systems.

  • NO/NC relay configuration
  • Up to 240VAC, 20A (NO) or 10A (NC)
  • 5VDC control via 4-pin connection

120V Module

WiFi-enabled standalone module with standard outlet interface.

  • Independent cloud connection
  • Standard 120VAC, 15A receptacle
  • 8A resistive, 3A inductive max
  • Only 2W average power draw

USB Module

Control access to USB-connected devices like microscopes and analyzers.

  • Controls up to 3 USB 2.0 ports
  • 1x USB-C (to computer), 3x USB-A (to devices)
  • 5VDC powered

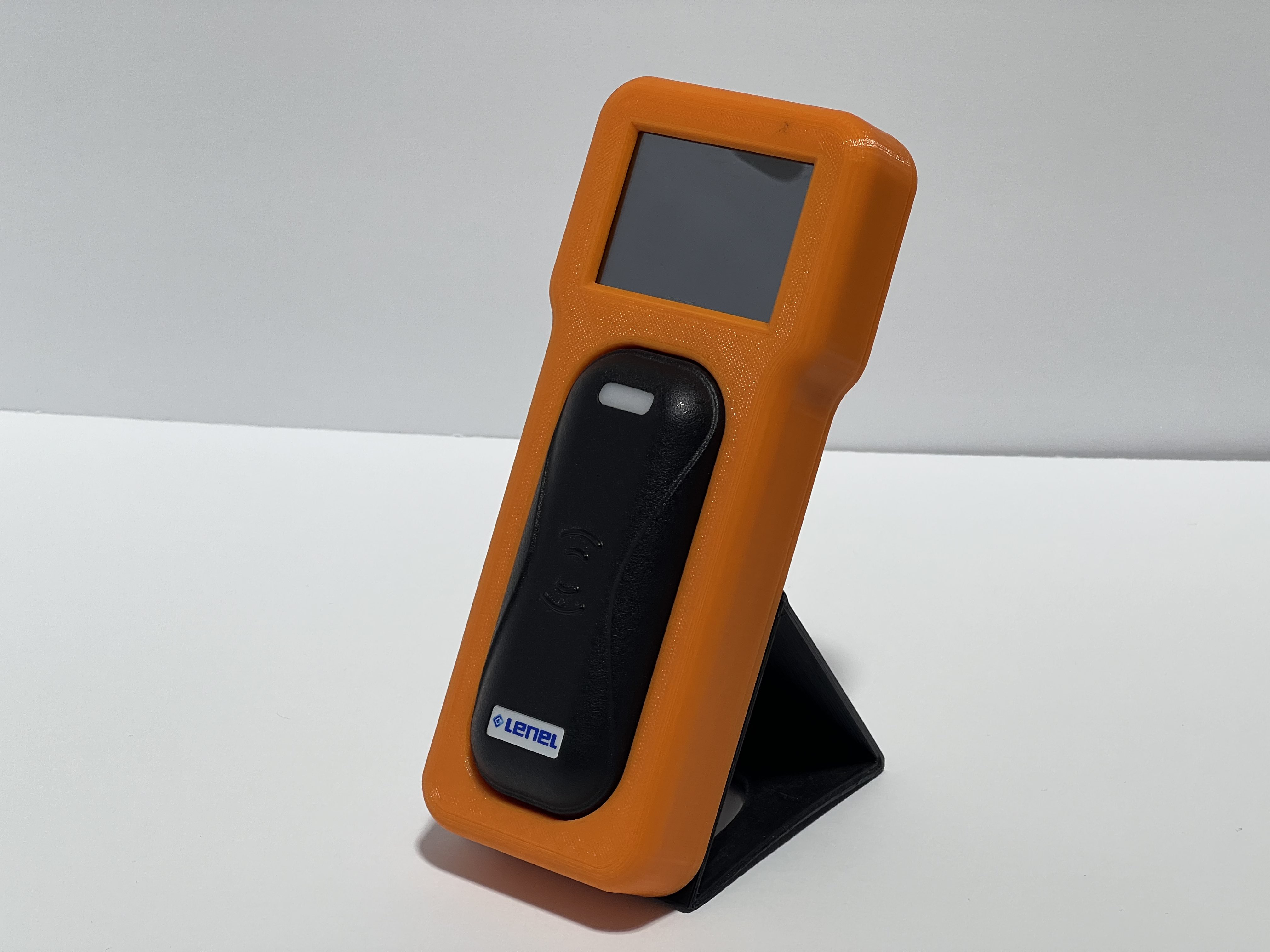

ControlTap Console

ControlTap Console with integrated display

Software

CardTap Portal

A browser-based management dashboard for complete control over your equipment, users, and operations. No software to install - just reliable WiFi.

Equipment Management

Add, configure, and monitor all your controlled equipment from one dashboard. See real-time status and availability.

Equipment Scheduling

Let users reserve equipment ahead of time. Day, week, and month calendar views make scheduling easy.

Certification Tracking

Define certification requirements for equipment. Track user training and automatically authorize certified users.

User Management

Manage staff and equipment users. Organize into groups and control access permissions at any level.

Usage Reports

Generate reports by tool, user, or time period. Export data for billing, maintenance planning, and budget justification.

Project Tracking

Associate equipment usage with projects for accurate cost allocation and resource planning.

CardTap Portal Reports

Usage Summary Report with filtering and export options

Supported Equipment Types

Our electrical interlock systems work with many types of lab and shop equipment.

CNC Mills & Lathes
3D Printers
Digital Microscopes
Lab Computers
Lab Analyzers
Manual Machines

Compatible with equipment that can be controlled via 120V power cycling, high-voltage relay, or USB connection.

Services

Integration & Custom Solutions

Need to connect CardTap with your existing systems? We offer integration services and custom solutions for tying into legacy or third-party systems.

  • API Access - RESTful API for custom integrations
  • Custom Authentication - Integrate with your identity provider
  • Data Export - Export usage data to your billing or ERP system
  • Custom Hardware Solutions - Modified configurations for unique requirements
Contact Us About Integration

Infrastructure Requirements

Reliable WiFi
That's it. Just WiFi.

All software infrastructure is web and cloud-based. No servers to maintain, no software to install. Access your portal from any browser.

Ready to Take Control?

See how CardTap can help you manage equipment access, track usage, and streamline operations.

Contact Sales View Pricing
